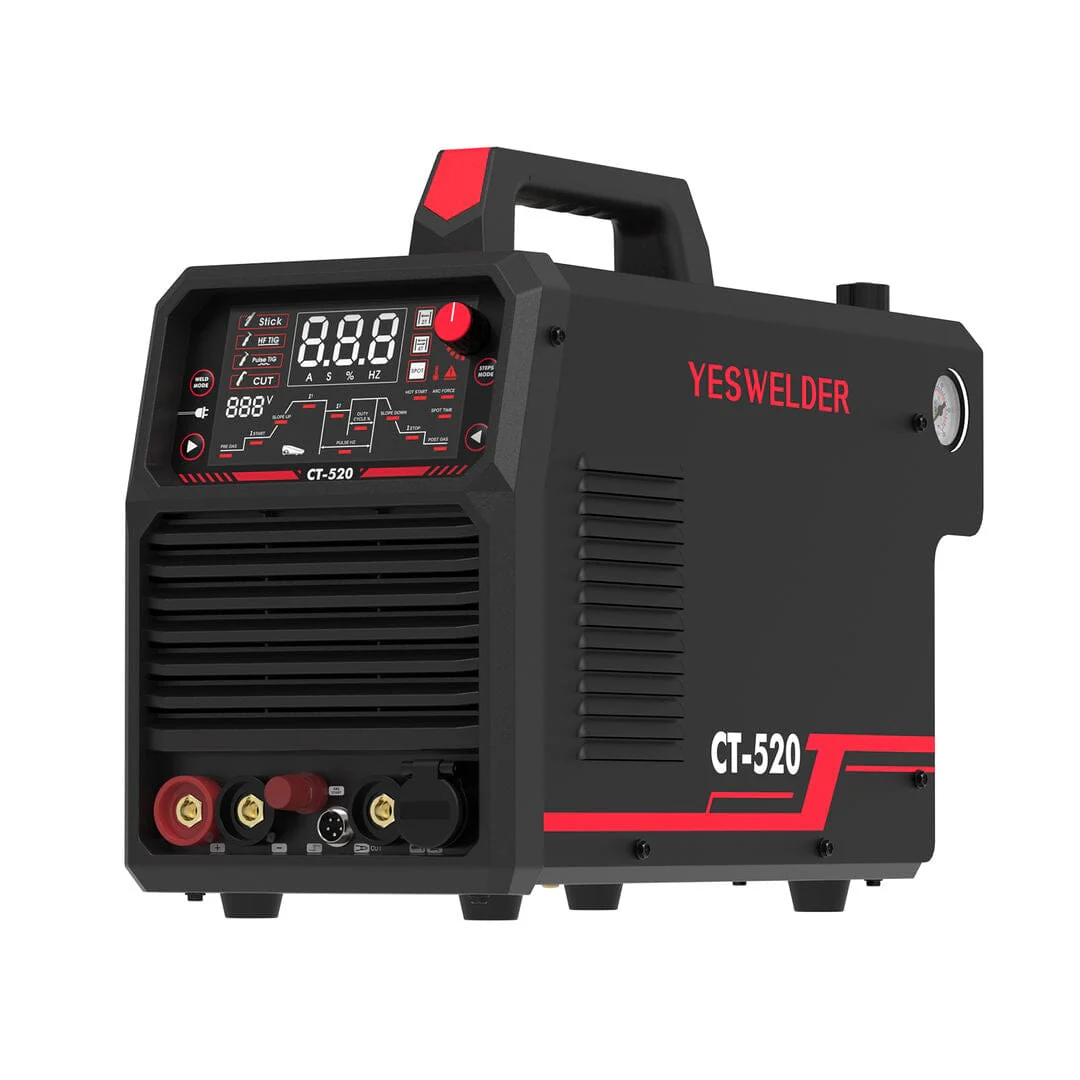

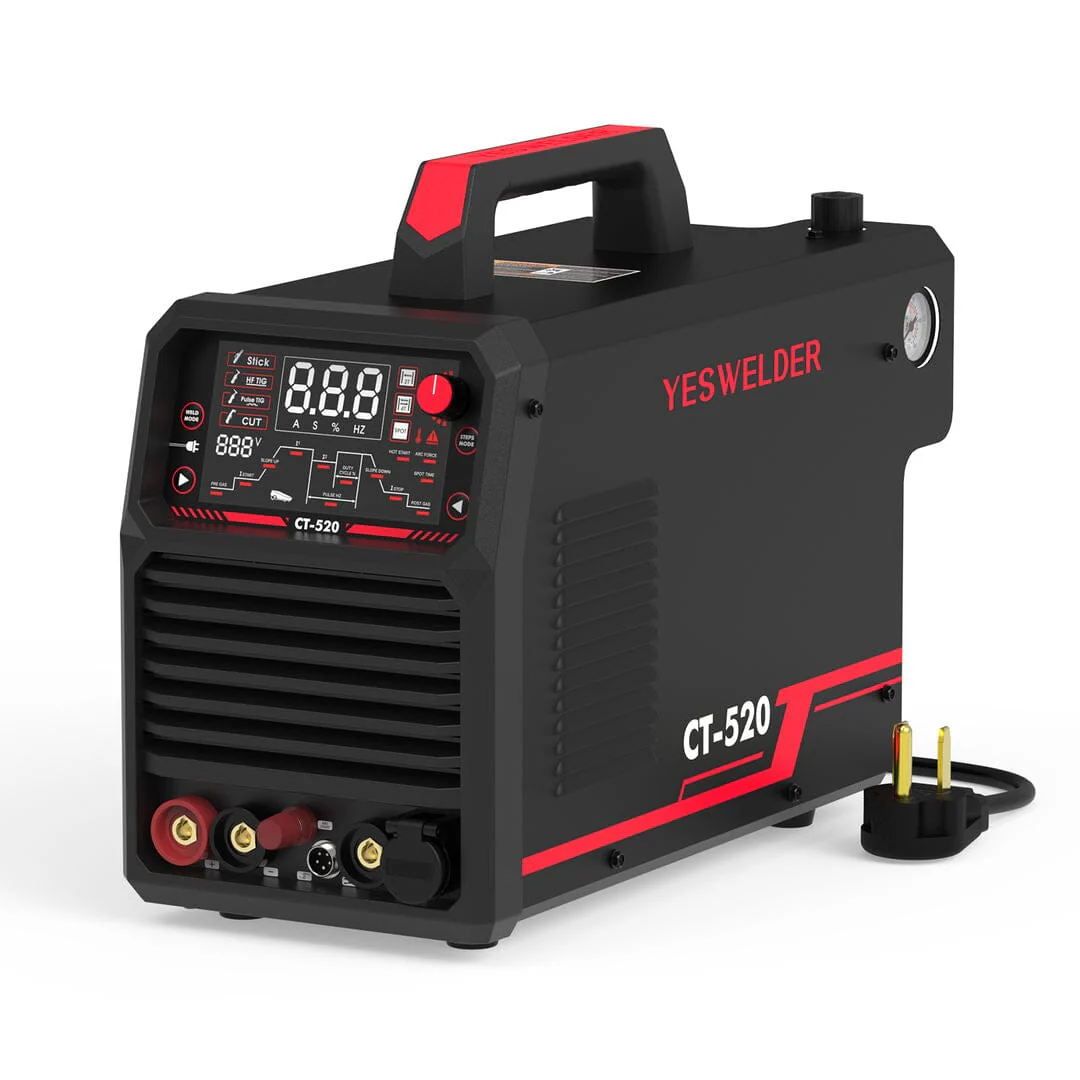

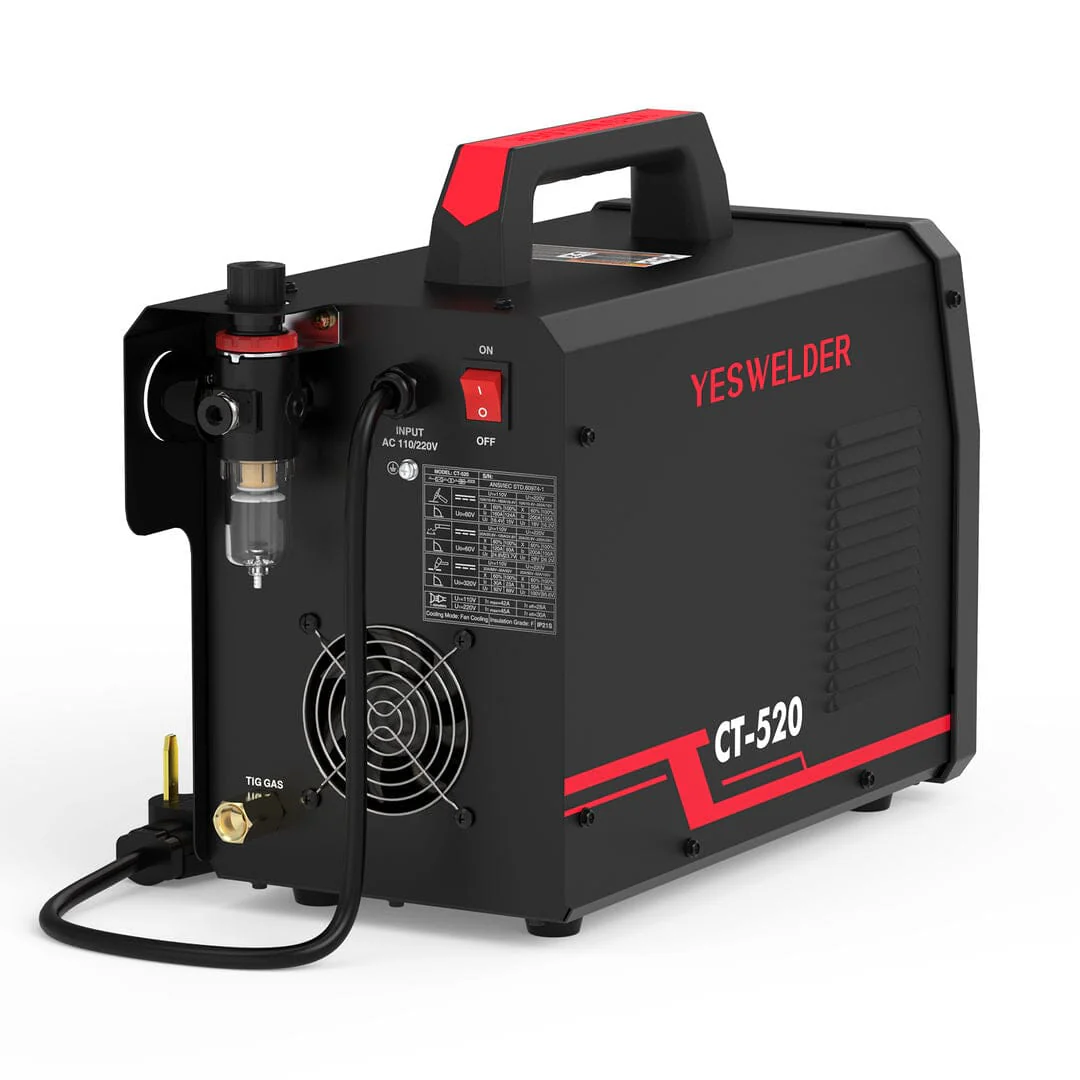

CT-520 Welder & Plasma Cutter | HF TIG, Pulse TIG, Stick, CUT | 200A Multi-Process Welding Machine
4-in-1 Multi-Functional Welding & Cutting System
Combines Stick, HF DC TIG, Pulse TIG, and Plasma Cutting in one powerful machine. Perfect for both beginners and professionals looking for a complete solution for various metalworking tasks.
HF TIG & Pulse TIG with Foot Pedal Support
Delivers up to 200A output with high-frequency non-touch arc initiation for stable and clean starts. Pulse TIG enhances control over heat input—ideal for thin or heat-sensitive materials. Fully supports foot pedal for both current and trigger control, with automatic detection.
Powerful CUT Mode with Non-Contact Arc Start
20–50A output range. Clean cut capacity: 5/16"(8mm) @110V, 1/2"(12mm) @220V; Max cut: 1/2"(12mm) @110V, 3/4"(20mm) @220V. Uses non-hazardous compressed air to cleanly cut stainless steel, carbon steel, aluminum, and more.
Gun Control Modes: 2T / 4T / Spot with Adjustable Spot Time
Provides multiple trigger control modes for different welding needs. Spot welding mode includes adjustable timing—ideal for precision applications like sheet metal fabrication.
HD Digital Display for Clear, Intuitive Operation
Equipped with a high-resolution digital screen for clear parameter visibility and real-time monitoring. Streamlines your workflow with modern, user-friendly interface.
Comprehensive Safety Protection
Built-in safeguards against over-current, over-voltage, and over-heating ensure long-term stability and user safety in demanding work environments.
Pack List
- TIG Torch (WP-26) with M16×1.5 torch connector and 5-pin plug
Plasma Torch (AG60) with M16×1.5 torch connector and 5-pin plug - Electrode Holder
- Ground Clamp
- Voltage Adapter – 220V to 110V plug
- Gas Hose for Weldig
- Gas Hose for Cutting
- Air Filter – With copper fitting, mounted on machine + NPT 1/4 connector.
4-in-1 Multi-Functional Welding & Cutting System
Combines Stick, HF DC TIG, Pulse TIG, and Plasma Cutting in one powerful machine. Perfect for both beginners and professionals looking for a complete solution for various metalworking tasks.
HF TIG & Pulse TIG with Foot Pedal Support
Delivers up to 200A output with high-frequency non-touch arc initiation for stable and clean starts. Pulse TIG enhances control over heat input—ideal for thin or heat-sensitive materials. Fully supports foot pedal for both current and trigger control, with automatic detection.
Powerful CUT Mode with Non-Contact Arc Start
20–50A output range. Clean cut capacity: 5/16"(8mm) @110V, 1/2"(12mm) @220V; Max cut: 1/2"(12mm) @110V, 3/4"(20mm) @220V. Uses non-hazardous compressed air to cleanly cut stainless steel, carbon steel, aluminum, and more.
Gun Control Modes: 2T / 4T / Spot with Adjustable Spot Time
Provides multiple trigger control modes for different welding needs. Spot welding mode includes adjustable timing—ideal for precision applications like sheet metal fabrication.
HD Digital Display for Clear, Intuitive Operation
Equipped with a high-resolution digital screen for clear parameter visibility and real-time monitoring. Streamlines your workflow with modern, user-friendly interface.
Comprehensive Safety Protection
Built-in safeguards against over-current, over-voltage, and over-heating ensure long-term stability and user safety in demanding work environments.
Pack List
- TIG Torch (WP-26) with M16×1.5 torch connector and 5-pin plug
Plasma Torch (AG60) with M16×1.5 torch connector and 5-pin plug - Electrode Holder
- Ground Clamp
- Voltage Adapter – 220V to 110V plug
- Gas Hose for Weldig
- Gas Hose for Cutting
- Air Filter – With copper fitting, mounted on machine + NPT 1/4 connector.
Original: $499.00
-70%$499.00
$149.70Description
4-in-1 Multi-Functional Welding & Cutting System
Combines Stick, HF DC TIG, Pulse TIG, and Plasma Cutting in one powerful machine. Perfect for both beginners and professionals looking for a complete solution for various metalworking tasks.
HF TIG & Pulse TIG with Foot Pedal Support
Delivers up to 200A output with high-frequency non-touch arc initiation for stable and clean starts. Pulse TIG enhances control over heat input—ideal for thin or heat-sensitive materials. Fully supports foot pedal for both current and trigger control, with automatic detection.
Powerful CUT Mode with Non-Contact Arc Start
20–50A output range. Clean cut capacity: 5/16"(8mm) @110V, 1/2"(12mm) @220V; Max cut: 1/2"(12mm) @110V, 3/4"(20mm) @220V. Uses non-hazardous compressed air to cleanly cut stainless steel, carbon steel, aluminum, and more.
Gun Control Modes: 2T / 4T / Spot with Adjustable Spot Time
Provides multiple trigger control modes for different welding needs. Spot welding mode includes adjustable timing—ideal for precision applications like sheet metal fabrication.
HD Digital Display for Clear, Intuitive Operation
Equipped with a high-resolution digital screen for clear parameter visibility and real-time monitoring. Streamlines your workflow with modern, user-friendly interface.
Comprehensive Safety Protection
Built-in safeguards against over-current, over-voltage, and over-heating ensure long-term stability and user safety in demanding work environments.
Pack List
- TIG Torch (WP-26) with M16×1.5 torch connector and 5-pin plug
Plasma Torch (AG60) with M16×1.5 torch connector and 5-pin plug - Electrode Holder
- Ground Clamp
- Voltage Adapter – 220V to 110V plug
- Gas Hose for Weldig
- Gas Hose for Cutting
- Air Filter – With copper fitting, mounted on machine + NPT 1/4 connector.
